Double-coated CTCP version
High Sensitivity and Excellent Printing Stability
Double-coated CTCP version
CTCP Plate, Double-coated CTCP Plate, UV CTP Plate, Positive-working Plate

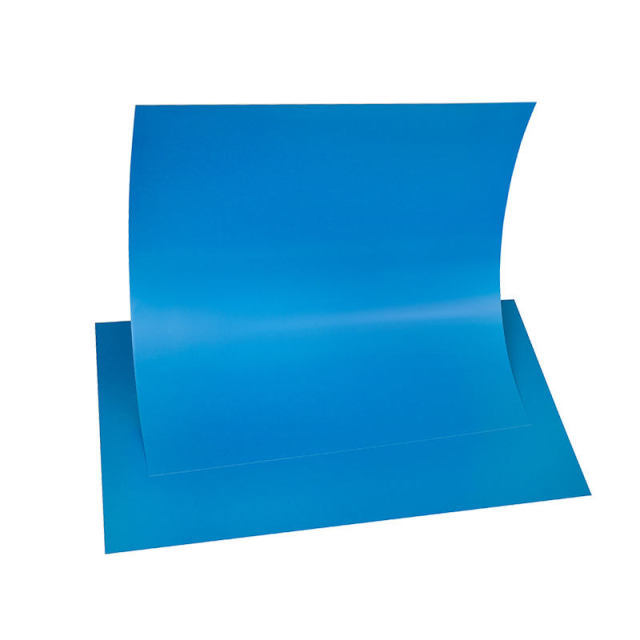

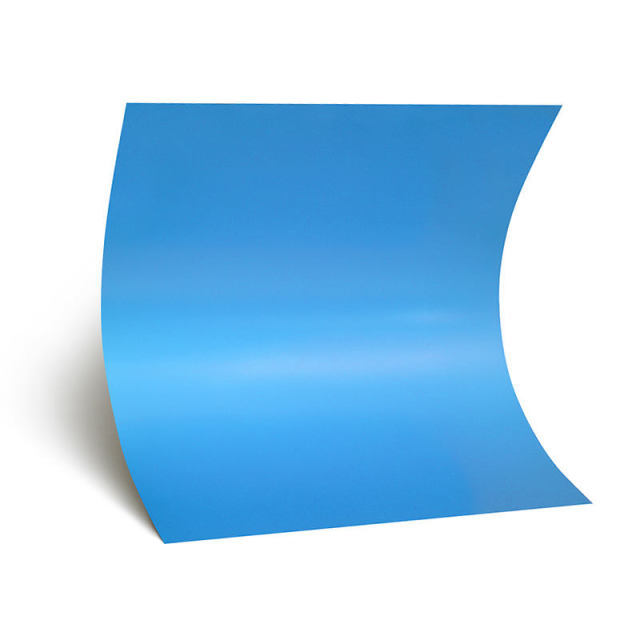

The Double-coated CTCP Plate is a premium positive-working plate designed for Conventional (UV) Computer-to-Plate systems, also known as CTCP.
Featuring a dual-layer coating, this plate delivers higher resolution, superior stability, and outstanding resistance to UV ink and press chemicals.
Its durable aluminum substrate ensures long run-length and consistent dot reproduction, making it an ideal choice for commercial, newspaper, and packaging printers using UV or visible-light exposure systems.
The double-coated design enhances sensitivity, sharpness, and plate life, offering a cost-effective and reliable alternative to traditional analog plates.
Technical Data Sheet
| Item | Specification |
|---|---|
| Plate Type | Double-coated Positive CTCP Plate |
| Imaging Wavelength | 350–450 nm (UV/Visible Light) |
| Substrate | Electrochemically grained & anodized aluminum |
| Coating Structure | Double-layer photopolymer (upper imaging + protective) |
| Plate Thickness | 0.15 mm / 0.20 mm / 0.30 mm |
| Resolution | 1%–99% @ 200–250 lpi |
| FM Screening | 20 μm FM screen |
| Run Length (Unbaked) | Up to 200,000 impressions |
| Run Length (Baked) | Up to 400,000 impressions |
| Developer | Positive-type plate developer |
| Exposure Energy | 55–65 mJ/cm² |
| Safelight | Yellow light safe |
| Storage Conditions | 15–25°C, 30–60% RH |
| Compatibility | Compatible with Amsky, Cron, Founder, Luscher, and other UV/CTCP systems |
Key Features
- Double-coated Photopolymer Structure ：The dual-layer coating enhances imaging sharpness, contrast, and surface protection for stable printing performance.
- High Sensitivity & Excellent Dot Reproduction ：Supports 1%–99% dots at 200–250 lpi, ensuring sharp images and precise color gradation for high-quality prints.
- Long Run Length & Durability ：Provides up to 200,000 impressions unbaked, and up to 400,000 impressions baked, delivering consistent results even with UV inks.
- Excellent UV Resistance ：The upper coating is specially formulated to resist UV exposure and chemical attack, maintaining coating stability throughout the print run.
- Wide Compatibility & Easy Processing ：Fully compatible with all CTCP exposure systems (UV or visible light 350–450 nm) and standard positive plate processors.
Recommended Applications
Commercial Printing
Perfect for high-quality brochures, flyers, and catalog production requiring accurate dot reproduction and stable performance.Newspaper Printing
Offers high-speed imaging and stable plate durability, ideal for mass production with rapid plate replacement cycles.Packaging & Label Printing
Excellent chemical and UV resistance for long runs using UV inks or varnishes.Trade Print Houses
Cost-effective choice for service providers handling large plate volumes with minimal waste and easy maintenance.
Frequently Asked Questions
What is the main difference between CTCP and CTP plates?
CTCP plates are imaged using UV or visible light (350–450 nm), while CTP plates use thermal (830 nm) or violet (405 nm) lasers. CTCP systems are generally more cost-effective and easier to maintain.
Why use a double-coated CTCP plate instead of a single-coated one?
The double coating provides stronger resistance to UV exposure, better imaging sharpness, and longer press life—ideal for demanding print environments.
Can the plate be baked for extended runs?
Yes, baking can extend the plate life from 200,000 to 400,000 impressions, especially for UV ink or long packaging print runs.
Which developers are compatible with this plate?
Use standard positive-type CTCP developers; no special formulation is required. Always follow the recommended developing time and temperature for best results.
