Fully Automatic Offset Plate Washer
High-efficiency, intelligent automatic plate processor for PS and CTP plate cleaning and development
Fully Automatic Offset Plate Washer
The Fully Automatic Offset Plate Washer is designed to provide precise, efficient, and consistent cleaning and development for both CTP and PS plates after exposure.
This system integrates temperature control, liquid management, filtration, and intelligent automation, ensuring stable performance, reduced resource consumption, and easy operation.
Built with advanced mechanical design and energy-saving technology, it is compatible with major CTP systems such as Kodak, Screen, Agfa, Creo, Amsky, and Cron, offering a seamless post-exposure processing experience for printing enterprises that demand stability and precision.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Fully Automatic Offset Plate Washer |
| Warranty | 1 Year |
| Condition | Brand New |
| Type | Plate Washer / Processor |
| Voltage | 380V |
| Origin | Wuxi, China |
| Dimensions (L×W×H) | 4800 × 2200 × 1200 mm |
| Weight | 1500 kg |
| Maximum Power | 8 kW |
| Maximum Speed | 440 mm/min |
| Maximum Plate Lift | 3.6 mm |
| Washing Width | 1300 mm |
| Plate Length | 2500 mm |
| Packaging | Standard export wooden case |
| Port of Shipment | Shanghai, China |
| Gross Weight | 1600 kg |
| Supply Capacity | 500 units/year |
Product Features
- Precise Temperature & Time Control : Ensures optimal cleaning results across different plate types and chemicals.
- Intelligent Developer Replenishment System : Maintains ideal developer concentration, reducing waste.
- High Water & Energy Efficiency : Up to 80% water saving and 30% energy saving during drying.
- Touchscreen Interface : Intuitive control with real-time monitoring and easy maintenance.
- Safety Protection Functions : Includes low liquid level alarms, dryness prevention, and over-temperature protection.

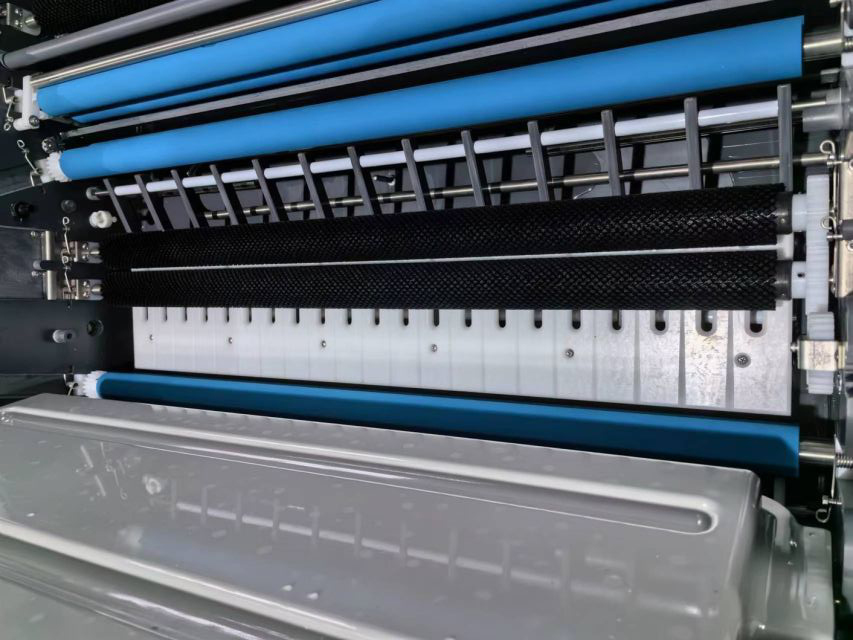

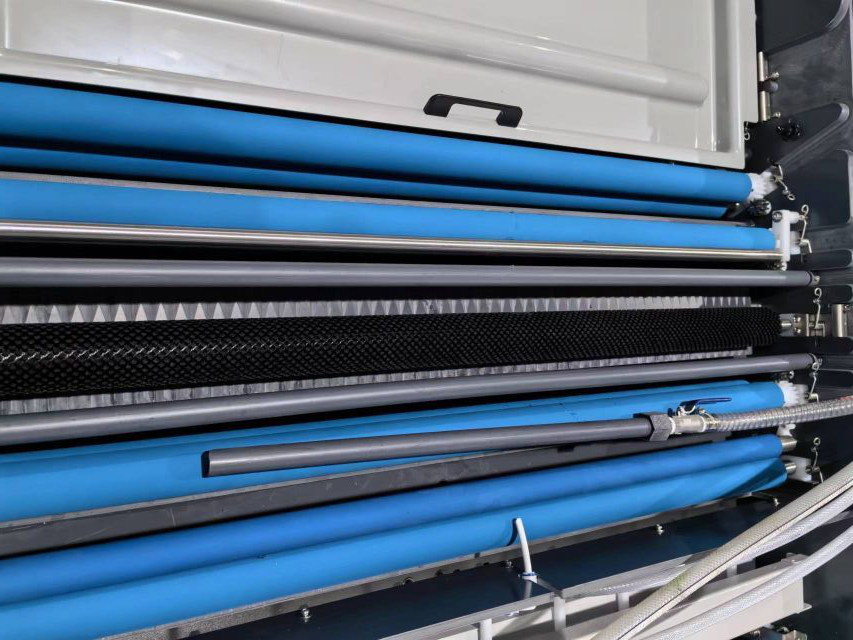

- Durable & Easy-to-Maintain Design : Foldable roller and brush structure with position memory for fast servicing.
- Stable Output Quality : Guarantees consistent development, clear output, and long-term reliability.
Recommended Applications
This plate washer is suitable for a wide range of offset printing prepress environments, including:
Thermal CTP plate cleaning and development
UV CTP plate processing
PS plate post-exposure cleaning
Commercial offset, newspaper, and packaging printing plants
Offline or online plate processing systems
Compatible with Kodak, Agfa, Screen, Amsky, Creo, Cron and other global CTP machines.
Ideal for medium to large printing enterprises requiring high stability, automation, and low operating costs.
Frequently Asked Questions
What types of plates can this washer handle?
It supports both PS and CTP plates — including thermal and UV-sensitive plates — for use with major brands like Kodak, Agfa, Screen, and Amsky.
How much water and energy does the system save compared to traditional plate processors?
Thanks to its optimized spray and drying design, it can save up to 80% water and 30% energy while maintaining identical processing quality.
How does the intelligent developer system work?
The built-in sensor monitors developer concentration in real time and automatically replenishes the correct amount to maintain consistent cleaning results and minimize waste.
Is it easy to maintain or clean the machine?
Yes. The roller and brush assemblies can be folded in half, featuring a position memory function for quick disassembly, cleaning, and reinstallation.
