Single-Layer Thermal CTP Plate

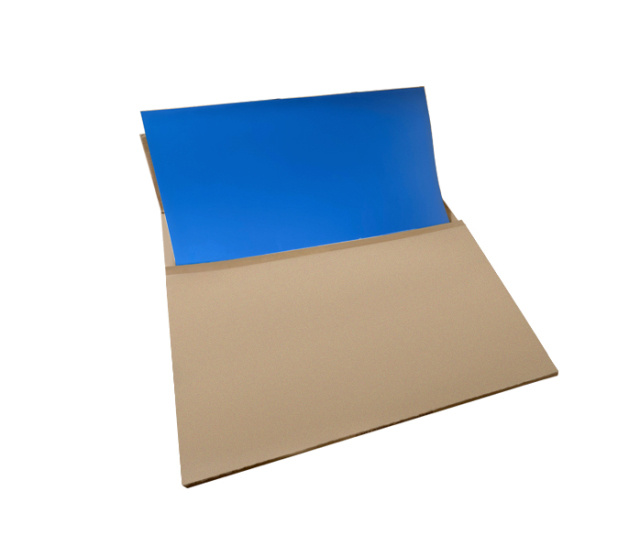

The Single-Layer Thermal CTP Plate is a high-quality, positive-working offset printing plate designed for commercial, newspaper, and packaging applications.
It features exceptional stability, consistent performance, and excellent bakeability, making it suitable for both short-run and long-run printing environments.
With precise dot reproduction, easy plate repair, and reliable compatibility with all mainstream thermal CTP systems, this plate ensures high efficiency and outstanding print quality.
This plate is ideal for printers seeking low-maintenance, cost-effective, and environmentally friendly prepress solutions that maintain sharp imaging and long plate life.
Technical Specifications
| Specification | Details |
|---|---|
| Type | Thermal Positive CTP Plate |
| Photosensitive Wavelength | 800–830 nm |
| Photosensitive Energy | 120–130 mJ/cm² |
| Resolution | 200 lpi (1–99%) |
| Plate Layer Structure | Single-Layer Coating |
| Run Length (Unbaked) | 80,000–120,000 impressions |
| Run Length (Baked) | 100,000–200,000 impressions |
| Plate Thickness | 0.15 mm / 0.30 mm (optional) |
| Developing Conditions | Compatible with standard thermal plate developers |
| Storage Conditions | 15–25°C, 30–70% RH |
| Surface Finish | Electrochemically Grained & Anodized Aluminum |
| Plate Color | Blue or Green (optional) |

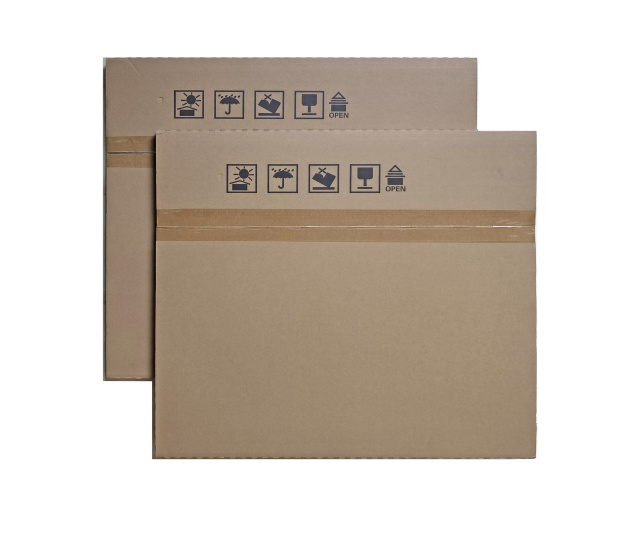

| Packaging | Vacuum-sealed, light-protective carton |
| Origin | Wuxi, China |
| Port of Shipping | Shanghai |
| Supply Capacity | 1,000,000 m² per year |
Product Features
- Exceptional Imaging Stability : Delivers sharp, uniform, and durable dots under stable thermal laser exposure.
- High Sensitivity : Compatible with 800–830 nm thermal laser diodes for fast imaging speed.
- Outstanding Bakeability : Supports post-bake runs of up to 200,000 impressions with excellent durability.
- Easy Repairability : Simple handling for plate correction and maintenance during production.
- Wide Compatibility : Suitable for all mainstream thermal CTP systems (Kodak, Screen, Agfa, Creo, Amsky, Cron, etc.).
- Consistent Print Quality : Maintains excellent ink-water balance and image clarity across long print runs.
- Environmentally Safe : Uses stable, low-volatile coating materials with minimal waste.
- Long Service Life : High chemical resistance and scratch tolerance ensure reliable performance in pressroom conditions.
Recommended Applications
The Single-Layer Thermal CTP Plate is ideal for:
Commercial offset printing requiring high-quality image reproduction.
Newspaper and magazine production with rapid imaging and high throughput.
Packaging printing with long-run durability and precise dot control.
Printers seeking consistent quality with reduced chemical usage and lower maintenance.
By using this plate, printing houses can achieve lower total costs, faster imaging, and greater production stability, improving overall workflow efficiency.
Frequently Asked Questions
What CTP systems are compatible with this plate?
It is fully compatible with all major thermal CTP systems such as Kodak, Agfa, Screen, Creo, Amsky, and Cron.
What is the expected print run for unbaked and baked plates?
Unbaked plates can print 80,000–120,000 impressions; baked plates can achieve 100,000–200,000 impressions.
Does this plate require a special developer?
No. It is compatible with standard thermal plate developers used in most prepress environments.
Is it suitable for high-resolution printing?
Yes. It supports up to 200 lpi resolution, ensuring sharp dots and fine image reproduction.
