Thermal CTP vs. Violet CTP: What’s the Difference?

Computer-to-Plate (CTP) technology has completely transformed modern offset printing by eliminating film, improving imaging accuracy, and increasing overall production efficiency.
Among all CTP technologies, Thermal CTP and Violet CTP are the two mainstream solutions used in commercial printing, packaging, books, magazines, and newspaper production.

Whether you are a printing factory, a distributor, or a business owner planning to invest in a new CTP system, understanding the differences between thermal and violet technology is essential for optimizing image quality, workflow speed, and total operational cost.

This guide provides a clear, professional, and SEO-optimized explanation of:

• How Thermal CTP works

• How Violet CTP works

• Key differences between the two

• Advantages & disadvantages

• Cost comparison

• Plate compatibility

• Which technology is best for different printing scenarios

• Why many printers now prefer Thermal CTP

• And our professional recommendations as a plate manufacturer

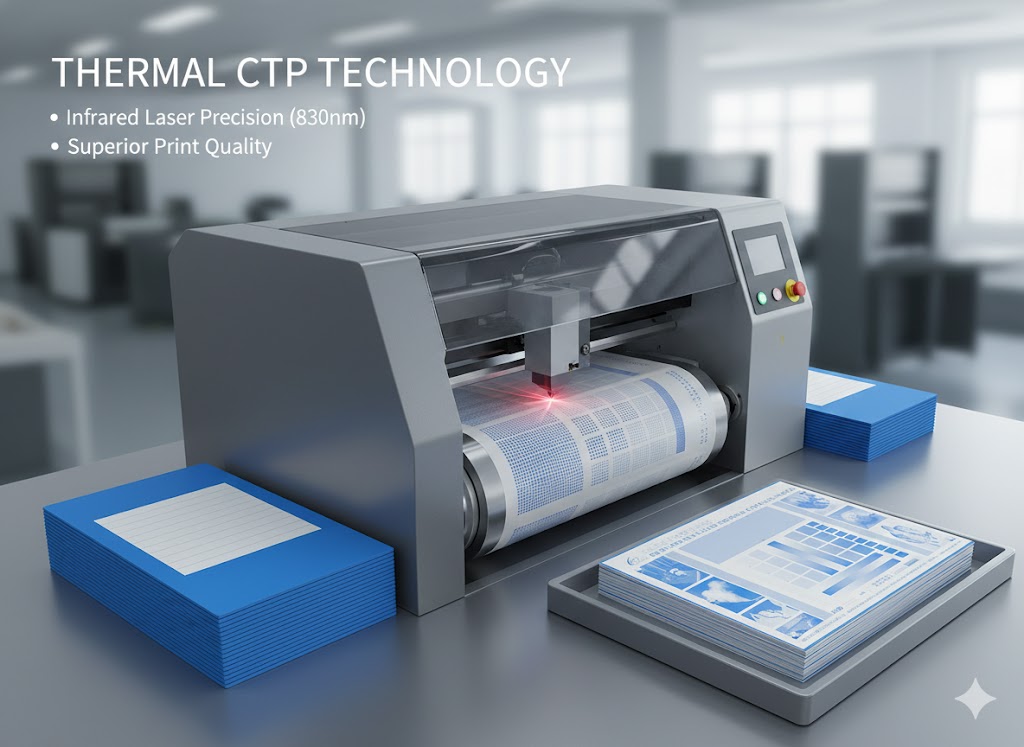

1. What Is Thermal CTP?

Thermal CTP (Computer-to-Plate) uses thermal infrared laser technology—mostly 830 nm wavelength—to expose an aluminum printing plate coated with thermal-sensitive photopolymer.

How It Works

1. The laser heats the coating to create chemical or physical changes.

2. The exposed areas become either ink-receptive (positive plate) or ink-repellent (negative plate).

3. The plate is processed (if non-process-free) or directly mounted on the press.

Main Characteristics

• Uses high-energy thermal laser

• Extremely precise dot reproduction

• High-resolution capability

• Excellent daylight handling

• Ideal for commercial printing, packaging, and high-end jobs

Typical Plate Types

• Thermal CTP plates

• Process-free thermal plates

• Low-chemistry thermal plates

• Water-washable thermal plates

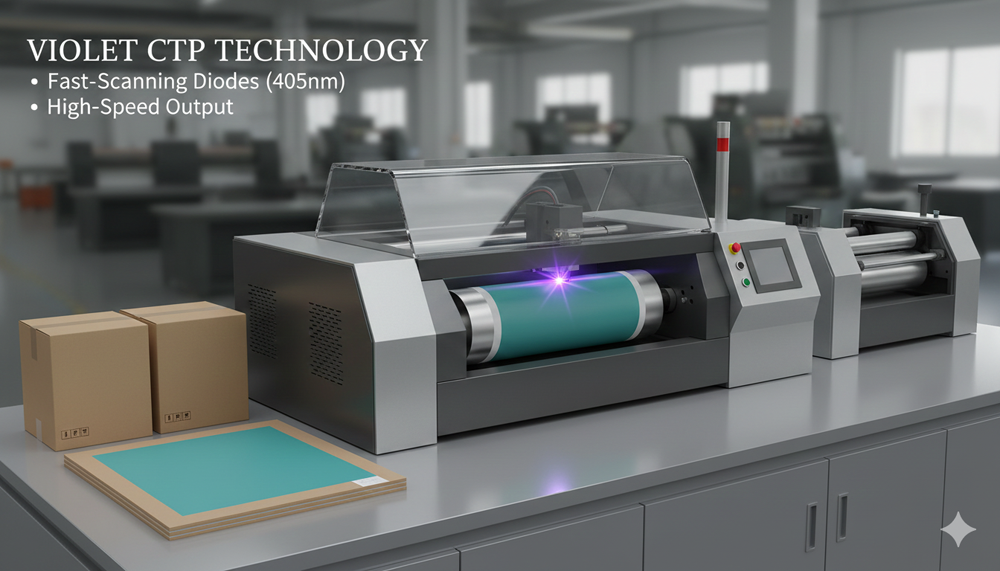

2. What Is Violet CTP?

Violet CTP uses violet laser diodes, typically 405 nm wavelength, to expose plates that contain photopolymer emulsions sensitive to violet light.

How It Works

1. Violet laser diodes scan the plate at very high speed.

2. The exposed coating becomes ink-receptive or ink-repellent.

3. The plate is developed in a processor (usually chemistry-based).

Main Characteristics

• Uses low-energy, fast-scanning violet laser

• Lower hardware cost

• High output speed

• Popular in newspaper printing

Typical Plate Types

• Violet CTP plates

• Chemistry-based violet photopolymer plates

• Chem-free violet plates (limited, but available)

3. Key Differences Between Thermal CTP and Violet CTP

Below is a simplified comparison table for quick understanding:

4. Imaging Quality Comparison

Thermal CTP: Best for High Precision

Thermal technology produces extremely sharp dots due to the stable thermal imaging process. This makes it ideal for:

• Fine text

• High-resolution images

• FM screening (20 μm dots or smaller)

• Luxury packaging

• High-quality commercial jobs

Violet CTP: Good but Not as Sharp

Violet plates can produce high-quality images but typically cannot reach the stability and consistency of thermal plates.

Best suited for:

• Newspapers

• Books

• Simple commercial work

5. Environmental Differences

Thermal CTP: Strong Environmental Benefits

• Process-free plates available

• No developer, no chemistry

• Low maintenance

• Cleaner pressroom

Examples: Kodak Sonora, Agfa Azura, Fujifilm ZX, CNCTP Process-Free Plates

Violet CTP: Mostly chemistry-based

Some manufacturers offer low-chemistry violet plates, but true process-free violet plates are rare.

• Requires developer

• Regular replenishment

• Higher waste treatment cost

6. Cost Comparison

Plate Cost

• Thermal plate price: slightly higher

• Violet plate price: lower

Machine Cost

• Thermal CTP machine: more expensive

• Violet CTP machine: cheaper, high-speed, suitable for large-volume newspaper printing

Total Cost of Ownership (TCO)

Factors include:

• Maintenance

• Chemistry usage

• Plate longevity

• Imaging accuracy

• Downtime costs

In many commercial printing companies, thermal plates end up being more cost-effective due to fewer errors and longer plate life.

7. Productivity and Speed

Thermal CTP

• Can run at high speed

• But typically slower than violet due to laser type

• Perfect for medium-to-high volume commercial printing

Violet CTP

• Very fast scanning

• Ideal for high-output requirements

• Used widely in newspaper printing plants

8. Which Is Better for Your Printing Business?

The answer depends on your production type.

Choose Thermal CTP If You Need:

High-quality commercial printing
Packaging printing
Books, brochures, art prints
Long run lengths
Stable dot reproduction
Process-free environmental solutions

Thermal is the global mainstream and preferred for general commercial printers.

Choose Violet CTP If You Need:

Newspaper production
Basic book printing
Very high-speed plate output
Lower investment cost

Violet systems excel in high-volume, lower-resolution applications.

9. Thermal & Violet CTP Plates We Provide

As a professional manufacturer of offset printing plates, we supply both Thermal CTP and Violet CTP plates, fully compatible with global CTP brands.

Our Product Range

• Thermal CTP Plates

• Violet CTP Plates

• UV/PS Plates

• Process-Free Plates

• Water-Washable Eco Plates

• Double-layer long-run plates

Why Customers Prefer Our Plates

• High-purity aluminum base

• Strong anodizing & graining

• Long run length

• Fast imaging

• Stable batches

• Factory-direct pricing

• Global shipping

If you are looking for a reliable supplier, feel free to contact us for samples or quotations.

Conclusion

Thermal CTP and Violet CTP each offer unique advantages.
Thermal CTP is ideal for printers demanding the highest-quality output, long run length, and environmentally friendly workflows.
Violet CTP is a strong choice for newspaper and high-volume operations demanding speed and lower cost.

Most modern commercial printers are now shifting toward thermal solutions due to their stability, resolution, and process-free options.

If you need expert advice or high-quality plates, our team can help you select the best solution for your printing business.
